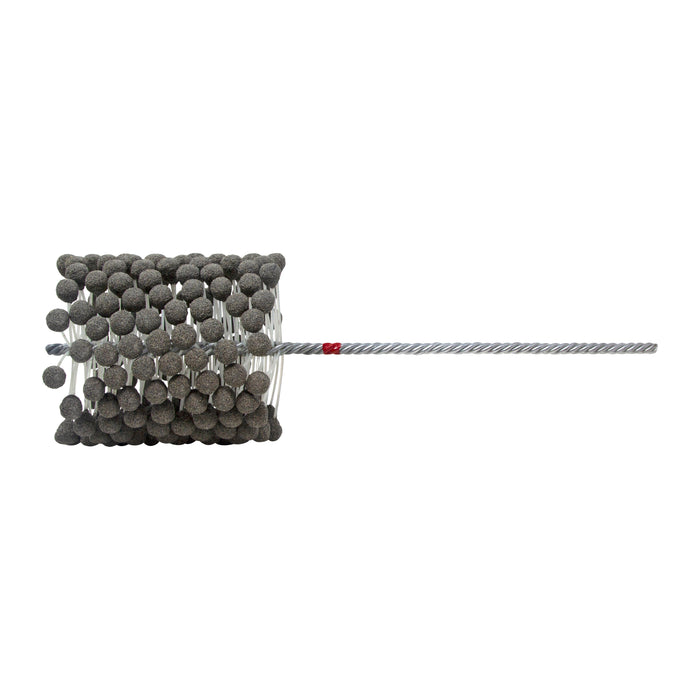

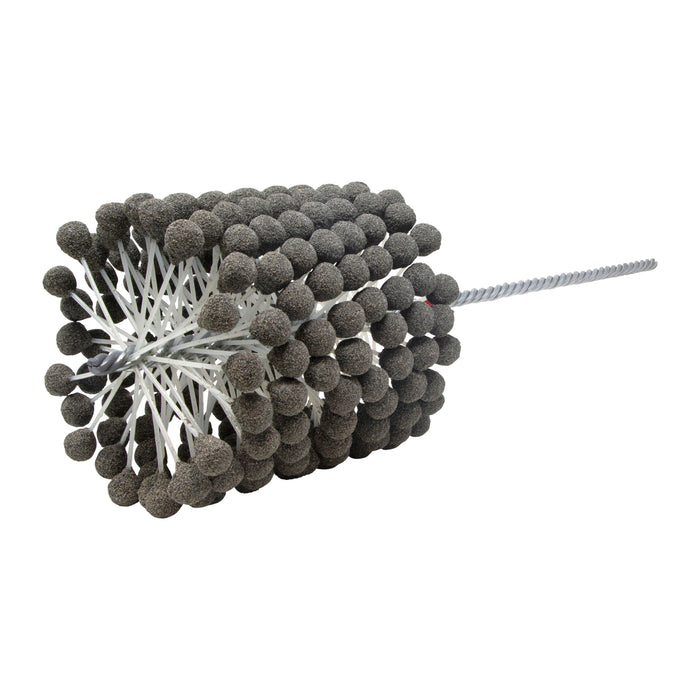

BRM GBD71260Z25 FLEX-HONE®, 7.500" (191mm) Bore, 17.5" OAL, 60 Grit, Zirconia Alumina #1525 (Z25)

“Lorem ipsum dolor sit amet consectetur. Varius integer consectetur tellus odio nec gravida. Pellentesque sit purus nulla in. Tellus eget ut posuere pharetra nec ultricies tortor posuere ac”

BRM GBD71260Z25 FLEX-HONE®, 7.500" (191mm) Bore, 17.5" OAL, 60 Grit, Zirconia Alumina #1525 (Z25)

Name: BRM GBD71260Z25 FLEX-HONE®, 7.500" (191mm) Bore, 17.5" OAL, 60 Grit, Zirconia Alumina #1525 (Z25)
Brand: Brush Research Manufacturing (BRM)
SKU: GBD71260Z25
Price: 256.04 USD
Availability: InStock

SKU: GBD71260Z25

$256.04 - $256.04

$256.04

$256.04 - $256.04

$256.04

Availability:

In stock, ready to be shipped

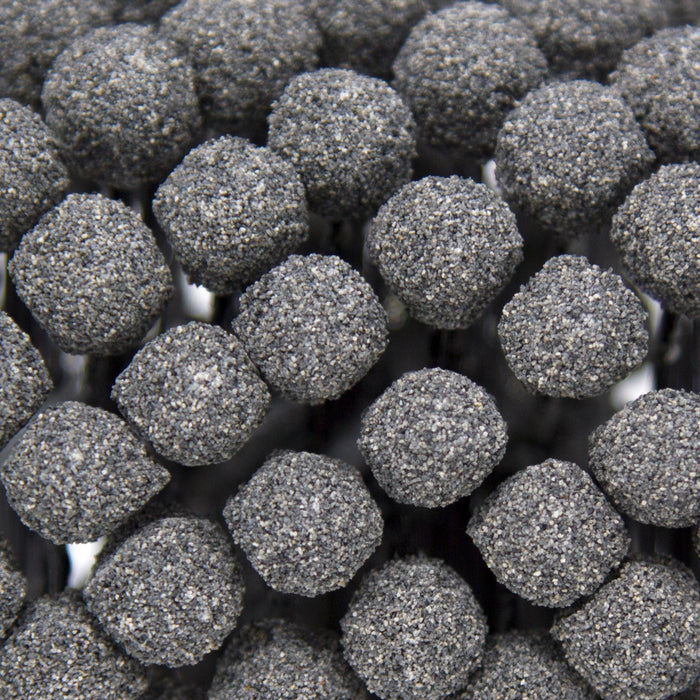

The GBD71260Z25 FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 7.001" and 7.500". Featuring 7.00" of abrasive globules which are composed of 60 grit Zirconia Alumina #1525 (Z25). Excellent for Low carbon to medium carbon steels, stainless steel and cast iron. 60 grit generally provides an Ra Finish range of 60 - 80 Microinch (1.5 - 2 Micrometer).

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

Proudly Made in the USA
Self Centering, Self Aligning, Self Compensating for Wear
Can be used in virtually any rotating spindle
Commonly used for finishing, deburring, and edge breaking
Typically achieves a finish of 60 - 80 Microinch (1.5 - 2 Micrometer)
Excellent on low carbon to medium carbon steels, stainless steel and cast iron

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 7.5

Bore Diameter (mm) 191

Minimum Bore Diameter (in) 7.001

Maximum Bore Diameter (in) 7.5

Overall Length (in) 17.5

Abrasive Part (in) 6.25

Abrasive Type Zirconia Alumina #1525

Grit 60

Tip Marking Grey

Stem Marking Red

Recommended RPM 350 - 600

Feed Rate (ipm) 10 - 2500

Lubrication Required

Power Requirements 1/3 hp to 1/2 hp

Ra Range 60 - 80 Microinch (1.5 - 2 Micrometer)

Series FLEX-HONE® GBD Heavy Duty (3"-8")

Stem Diameter (in) 0.42

Applicable Materials Low carbon to medium carbon steels, stainless steel and cast iron

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469153500

Prop 65 Warning Description

⚠️ CA WARNING: Cancer risk from exposure to Silica. See www.P65Warnings.ca.gov

description

The BRM FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is available in a variety of different grits and sizes ranging from 4mm to 36 inches. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. Finer grits can assist with achieving single RA finishes. In Automotive, Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE®Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject.

User Guides

FLEX-HONE® Resource Guide The Flex-Hone Resource Guide teaches you how to select the right tool for your application. Have you ever had questions about tool diameter, grit selection, abrasive type or recommended RPMs? We go over all of this and more.

Application Sales Sheet

FLEX-HONE® Crosshole Deburring FLEX-HONE® ID Polishing of Hardened Tool Steel FLEX-HONE® Coating Removal FLEX-HONE® Rust and Corrosion Removal FLEX-HONE® Thread Deburring

Case Studies

The Case for Abrasive Finishing Tools In CNC Applications

Safety Information

FLEX-HONE® SDS Sheet
