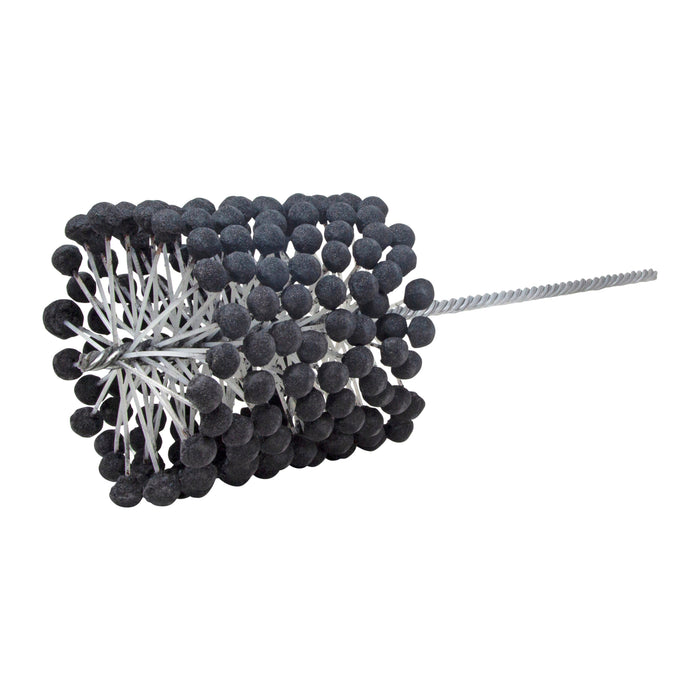

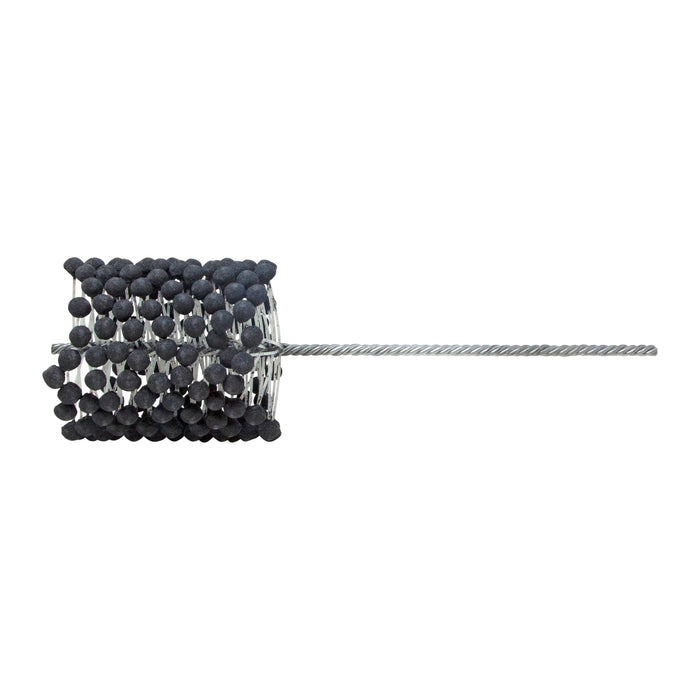

BRM GBD80012 FLEX-HONE®, 8.000" (203mm) Bore, 17.5" OAL, 120 Grit, Silicon Carbide (SC)

“Lorem ipsum dolor sit amet consectetur. Varius integer consectetur tellus odio nec gravida. Pellentesque sit purus nulla in. Tellus eget ut posuere pharetra nec ultricies tortor posuere ac”

BRM GBD80012 FLEX-HONE®, 8.000" (203mm) Bore, 17.5" OAL, 120 Grit, Silicon Carbide (SC)

Name: BRM GBD80012 FLEX-HONE®, 8.000" (203mm) Bore, 17.5" OAL, 120 Grit, Silicon Carbide (SC)
Brand: Brush Research Manufacturing (BRM)
SKU: GBD80012
Price: 195.44 USD
Availability: InStock

SKU: GBD80012

$195.44 - $195.44

$195.44

$195.44 - $195.44

$195.44

Availability:

In stock, ready to be shipped

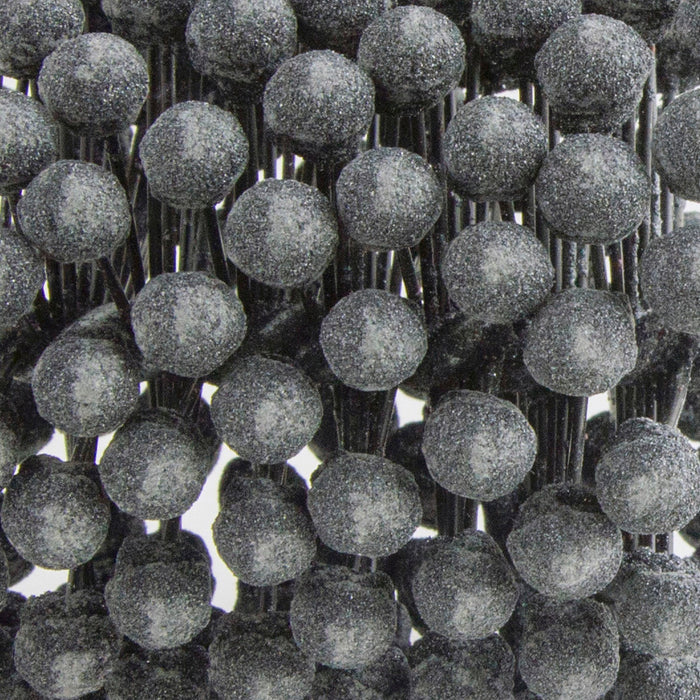

The GBD80012 FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 7.501" and 8.000". Featuring 7.25" of abrasive globules which are composed of 120 grit Silicon Carbide (SC). Excellent for Mild steel, stainless steel, cast iron and other softer ferrous materials. 120 grit generally provides an Ra Finish range of 35 - 50 Microinch (.9 - 1.4 Micrometer).

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

Proudly Made in the USA
Self Centering, Self Aligning, Self Compensating for Wear
Can be used in virtually any rotating spindle
Commonly used for finishing, deburring, and edge breaking
Typically achieves a finish of 35 - 50 Microinch (.9 - 1.4 Micrometer)
Excellent on mild steel, stainless steel, cast iron and other softer ferrous materials

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 8

Bore Diameter (mm) 203

Minimum Bore Diameter (in) 7.501

Maximum Bore Diameter (in) 8

Overall Length (in) 17.5

Abrasive Part (in) 6.25

Abrasive Type Silicon Carbide

Grit 120

Tip Marking Silver/No Color

Stem Marking Silver/No Color

Recommended RPM 225 - 300

Feed Rate (ipm) 10 - 2500

Lubrication Required

Power Requirements 1/3 hp to 1/2 hp

Ra Range 35 - 50 Microinch (.9 - 1.4 Micrometer)

Series FLEX-HONE® GBD Heavy Duty (3"-8")

Stem Diameter (in) 0.42

Applicable Materials Mild steel, stainless steel, cast iron and other softer ferrous materials

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469153593

Prop 65 Warning Description

⚠️ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

description

The BRM FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is available in a variety of different grits and sizes ranging from 4mm to 36 inches. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. Finer grits can assist with achieving single RA finishes. In Automotive, Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE®Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject.
