BRM GBD101240AO FLEX-HONE®, 10.500" (267mm) Bore, 34" OAL, 40 Grit, Aluminum Oxide (AO)

“Lorem ipsum dolor sit amet consectetur. Varius integer consectetur tellus odio nec gravida. Pellentesque sit purus nulla in. Tellus eget ut posuere pharetra nec ultricies tortor posuere ac”

BRM GBD101240AO FLEX-HONE®, 10.500" (267mm) Bore, 34" OAL, 40 Grit, Aluminum Oxide (AO)

Name: BRM GBD101240AO FLEX-HONE®, 10.500" (267mm) Bore, 34" OAL, 40 Grit, Aluminum Oxide (AO)
Brand: Brush Research Manufacturing (BRM)
SKU: GBD101240AO
Price: 502.91 USD
Availability: OutOfStock

SKU: GBD101240AO

Sold out

$502.91 - $502.91

$502.91

$502.91 - $502.91

$502.91

Availability:

Out of stock

The GBD101240AO Woodcore FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 10.001" and 10.500". Featuring 9.00" of abrasive globules which are composed of 40 grit Aluminum Oxide (AO). Excellent for Aluminum, Brass, Bronze, and softer non-ferrous materials. 40 grit generally provides an Ra Finish range of 70 - 125 Microinch (1.7 - 3.2 Micrometer). Requires mfg part# SHAFT4. Hex drive shaft, sold separately.

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

Proudly Made in the USA
Self Centering, Self Aligning, Self Compensating for Wear
Note: Shaft Sold Separately
Commonly used for finishing, deburring, and edge breaking

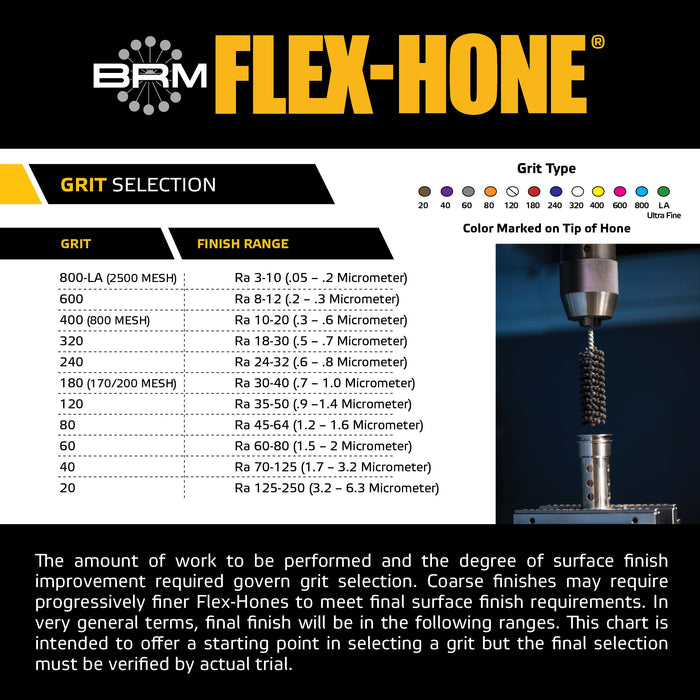

Typically achieves a finish of 70 - 125 Microinch (1.7 - 3.2 Micrometer)
Excellent on aluminum, brass, bronze, and softer non-ferrous materials.

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 10.5

Bore Diameter (mm) 267

Minimum Bore Diameter (in) 10.001

Maximum Bore Diameter (in) 10.5

Overall Length (in) 34

Abrasive Part (in) 9

Abrasive Type Aluminum Oxide

Grit 40

Tip Marking Purple

Stem Marking Black

Recommended RPM 225 - 300

Feed Rate (ipm) 10 - 600

Lubrication Required

Power Requirements 1/2 hp to 3/4 hp

Ra Range 70 - 125 Microinch (1.7 - 3.2 Micrometer)

Series FLEX-HONE® GBD Heavy Duty Wood Core (8" - 18")

Applicable Materials Aluminum, Brass, Bronze, and softer non-ferrous materials

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469162335

Prop 65 Warning Description

⚠️ CA WARNING: Cancer risk from exposure to Silica. See www.P65Warnings.ca.gov

description

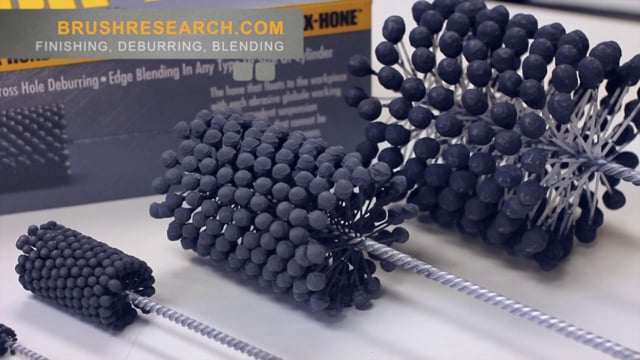

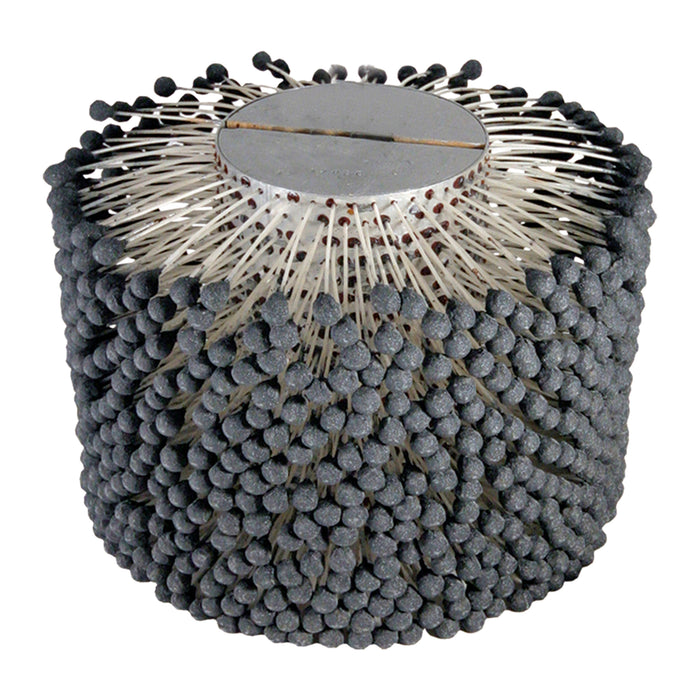

The BRM GBD Heavy Duty Wood Core FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is available in a variety of different grits and sizes ranging from 4mm to 36 inches. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. Finer grits can assist with achieving single RA finishes. In Automotive, Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE®Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject. All heavy duty wood core hones (8"-18") require a steel hex drive shaft that is 34" in overall length.
