BRM GBD1700800BC FLEX-HONE®, 17.000" (432mm) Bore, 34" OAL, 800 Grit, Boron Carbide (BC)

“Lorem ipsum dolor sit amet consectetur. Varius integer consectetur tellus odio nec gravida. Pellentesque sit purus nulla in. Tellus eget ut posuere pharetra nec ultricies tortor posuere ac”

BRM GBD1700800BC FLEX-HONE®, 17.000" (432mm) Bore, 34" OAL, 800 Grit, Boron Carbide (BC)

Name: BRM GBD1700800BC FLEX-HONE®, 17.000" (432mm) Bore, 34" OAL, 800 Grit, Boron Carbide (BC)
Brand: Brush Research Manufacturing (BRM)
SKU: GBD1700800BC
Price: 3715.15 USD
Availability: OutOfStock

SKU: GBD1700800BC

Sold out

$3,715.15 - $3,715.15

$3,715.15

$3,715.15 - $3,715.15

$3,715.15

Availability:

Out of stock

The GBD1700800BC Woodcore FLEX-HONE® tool for surface finishing and deburring is designed for bore sizes between 16.001" and 17.000". Featuring 12.00" of abrasive globules which are composed of 800 grit Boron Carbide (BC). Excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. 800 grit generally provides an Ra Finish range of 3 - 10 Microinch (.05 - .2 Micrometer). Requires mfg part# SHAFT6. Hex drive shaft, sold separately.

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

Proudly Made in the USA
Self Centering, Self Aligning, Self Compensating for Wear
Note: Shaft Sold Separately
Commonly used for finishing, deburring, and edge breaking
Typically achieves a finish of 3 - 10 Microinch (.05 - .2 Micrometer)
Excellent on medium to high carbon steels and heat-treated steels to 50 rc. it is also useful in titanium

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 17

Bore Diameter (mm) 432

Minimum Bore Diameter (in) 16.001

Maximum Bore Diameter (in) 17

Overall Length (in) 34

Abrasive Part (in) 12

Abrasive Type Boron Carbide

Grit 800

Tip Marking Light Blue

Stem Marking Gold

Recommended RPM 125 - 200

Feed Rate (ipm) 10 - 600

Lubrication Required

Power Requirements 3/4 hp to 1-1/2 hp

Ra Range 3 - 10 Microinch (.05 - .2 Micrometer)

Series FLEX-HONE® GBD Heavy Duty Wood Core (8" - 18")

Applicable Materials Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469163790

description

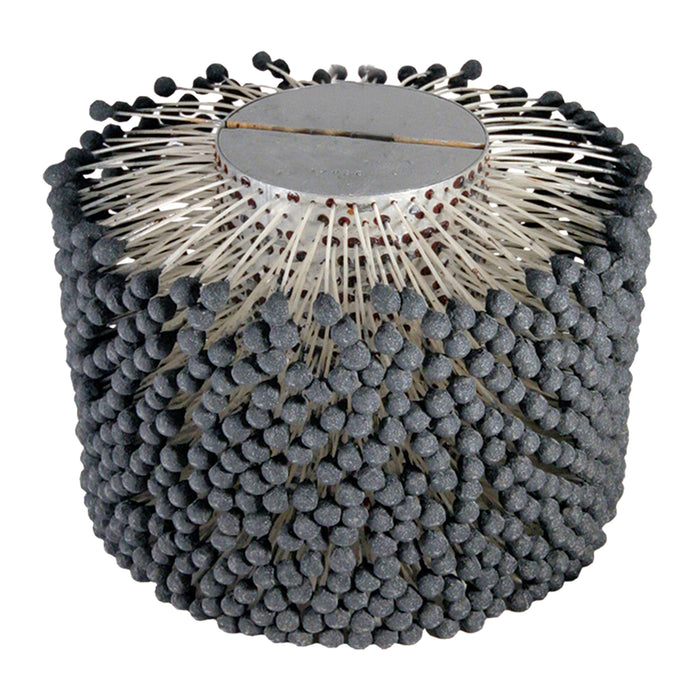

The BRM GBD Heavy Duty Wood Core FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is available in a variety of different grits and sizes ranging from 4mm to 36 inches. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. Finer grits can assist with achieving single RA finishes. In Automotive, Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE®Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject. All heavy duty wood core hones (8"-18") require a steel hex drive shaft that is 34" in overall length.

User Guides

FLEX-HONE® Resource Guide The Flex-Hone Resource Guide teaches you how to select the right tool for your application. Have you ever had questions about tool diameter, grit selection, abrasive type or recommended RPMs? We go over all of this and more.

Application Sales Sheet

FLEX-HONE® Crosshole Deburring FLEX-HONE® ID Polishing of Hardened Tool Steel FLEX-HONE® Coating Removal FLEX-HONE® Rust and Corrosion Removal FLEX-HONE® Thread Deburring

Case Studies

Oil and Gas Maintenance Nuclear Plant Pipes Large Bore Pumps, Valves and Engines

Safety Information

FLEX-HONE® SDS Sheet Safety Slip
