BRM GBDX2200LA FLEX-HONE®, 22" (559mm) Bore, 28" OAL, 1000/1200 Grit, Levigated Alumina (LA)

Name: BRM GBDX2200LA FLEX-HONE®, 22" (559mm) Bore, 28" OAL, 1000/1200 Grit, Levigated Alumina (LA)
Brand: Brush Research Manufacturing (BRM)
SKU: GBDX2200LA
Price: 4213.05 USD
Availability: OutOfStock

SKU: GBDX2200LA

Sold out

$4,213.05 - $4,213.05

$4,213.05

$4,213.05 - $4,213.05

$4,213.05

Availability:

Out of stock

The GBDX2200LA FLEX-HONE® tool for surface finishing and deburring is designed for nominal bore sizes between 21.001" and 22.000". This tool features 12.00" of abrasive globules which are composed of 1000/1200 grit Levigated Alumina (LA) and are excellent for Final polish on many materials. Constructed using a steel drum with replaceable honing sections.

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

["Proudly Made in the USA
Self Centering
Self Aligning
Self Compensating for Wear
Commonly used for finishing
deburring
and edge breaking
Typically achieves a finish of 3 - 10 Microinch (.05 - .2 Micrometer)
Uses replaceable D sections
Features a .750" driveshaft
Excellent for final polish on many materials"]

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 22

Bore Diameter (mm) 559

Minimum Bore Diameter (in) 21.001

Maximum Bore Diameter (in) 22

Overall Length (in) 28

Abrasive Part (in) 12

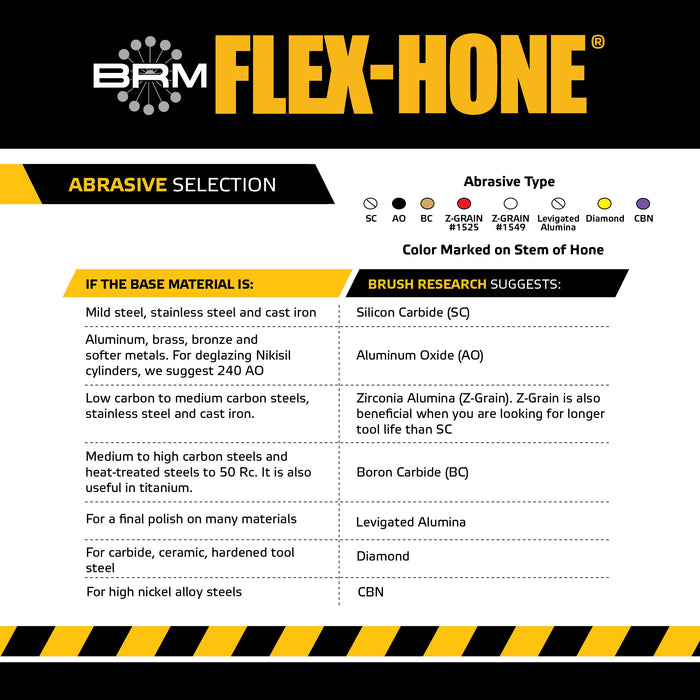

Abrasive Type Levigated Alumina

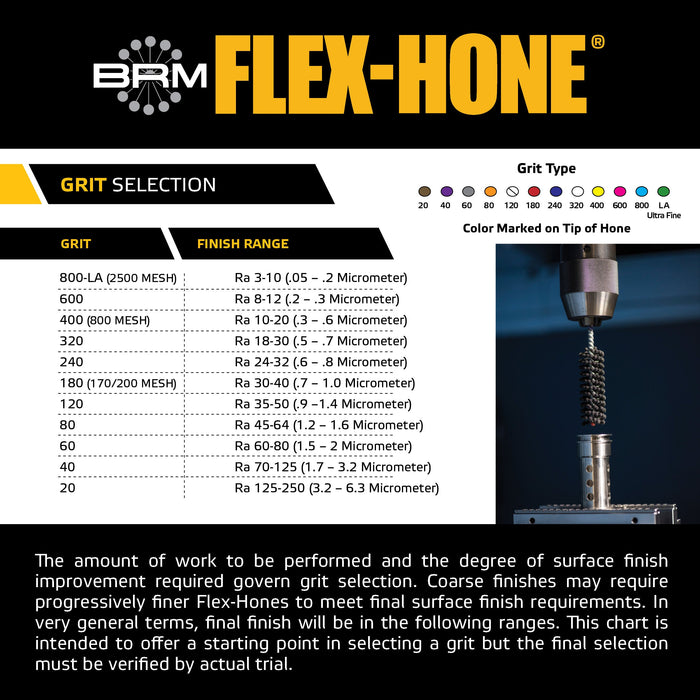

Grit 1000/1200

Tip Marking See Sections

Stem Marking See Sections

Recommended RPM 60 - 120

Feed Rate (ipm) 10 - 600

Lubrication Required

Power Requirements 1-1/2 hp to 5 hp

Ra Range 3 - 10 Microinch (.05 - .2 Micrometer)

Series GBDX-Super Heavy Duty FLEX-HONE®

Shaft Diameter (in) 0.75

Drum 11.5

Number of Sections 22

Replacement Section D

Applicable Materials Final polish on many materials

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469155481

Prop 65 Warning Description

⚠️ CA WARNING: Cancer risk from exposure to Silica. See www.P65Warnings.ca.gov

description

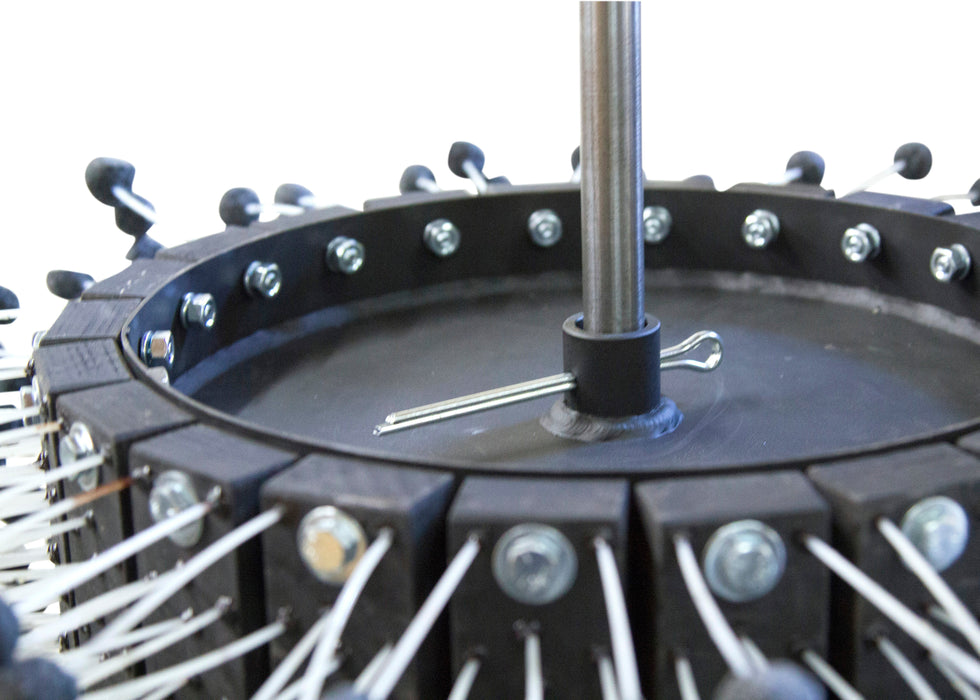

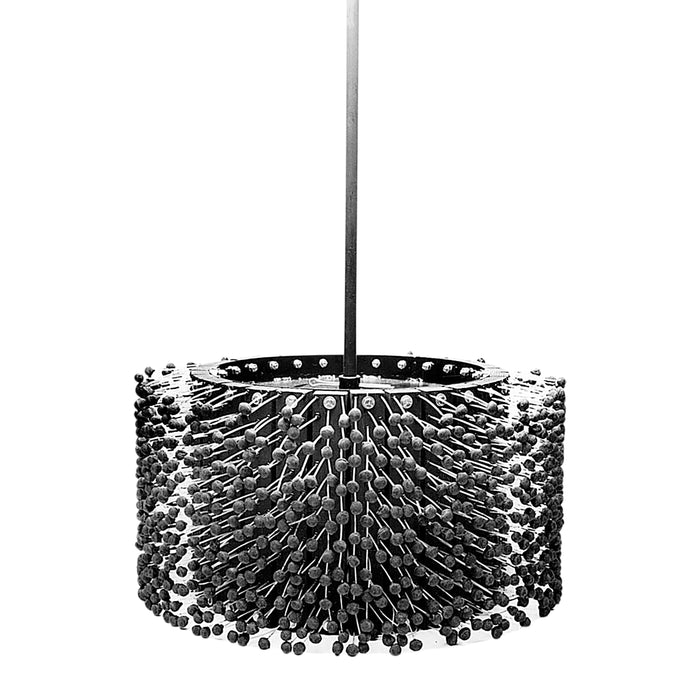

The BRM Extra Heavy Duty GBDX Series FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is constructed using a steel drum with replaceable honing sections allowing one drum to cover a range of bore diameters from 19”- 36” and to allow multiple grits or abrasive types. Shaft diameters range from 3/4" to 1-1/4", depending on drum diameter. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. In Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE® Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject.
