BRM GBDX2400120BC FLEX-HONE®, 24" (610mm) Bore, 28" OAL, 120 Grit, Boron Carbide (BC)

Name: BRM GBDX2400120BC FLEX-HONE®, 24" (610mm) Bore, 28" OAL, 120 Grit, Boron Carbide (BC)
Brand: Brush Research Manufacturing (BRM)
SKU: GBDX2400120BC
Price: 6310.59 USD
Availability: OutOfStock

SKU: GBDX2400120BC

Sold out

$6,310.59 - $6,310.59

$6,310.59

$6,310.59 - $6,310.59

$6,310.59

Availability:

Out of stock

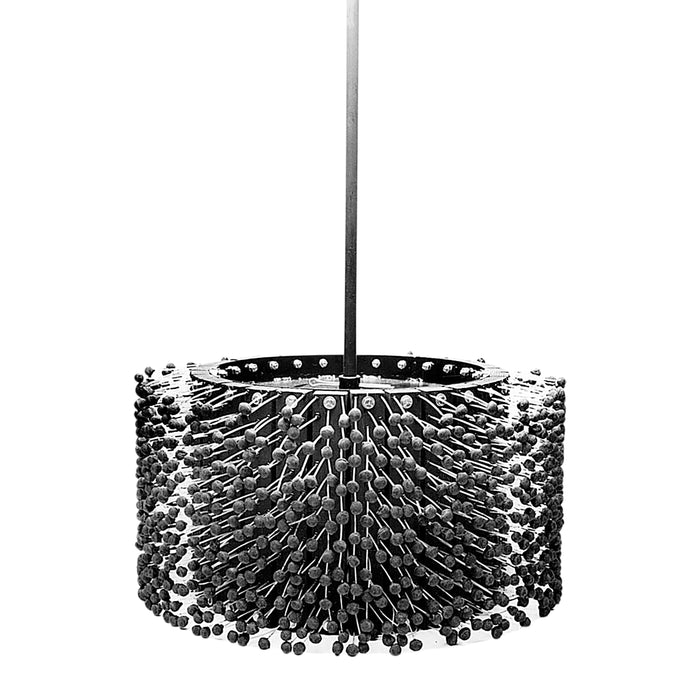

The GBDX2400120BC FLEX-HONE® tool for surface finishing and deburring is designed for nominal bore sizes between 23.001" and 24.000". This tool features 12.00" of abrasive globules which are composed of 120 grit Boron Carbide (BC) and are excellent for Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium. Constructed using a steel drum with replaceable honing sections.

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

["Proudly Made in the USA
Self Centering
Self Aligning
Self Compensating for Wear
Commonly used for finishing
deburring
and edge breaking
Typically achieves a finish of 35 - 50 Microinch (.9 - 1.4 Micrometer)
Uses replaceable B sections
Features a .750" driveshaft
Excellent on medium to high carbon steels and heat-treated steels to 50 rc. it is also useful in titanium"]

Request a quote

Description

Brand Name FLEX-HONE®

Bore Diameter (in) 24

Bore Diameter (mm) 813

Minimum Bore Diameter (in) 31.001

Maximum Bore Diameter (in) 24

Overall Length (in) 36

Abrasive Part (in) 12

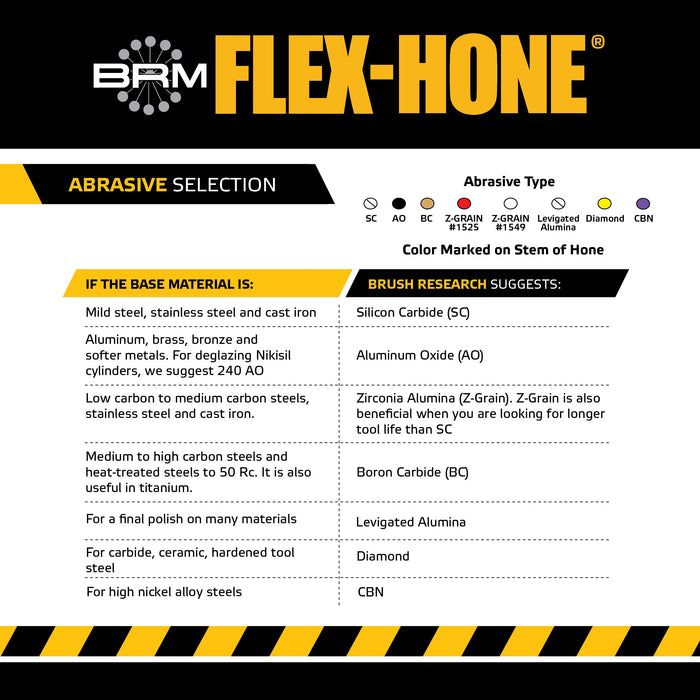

Abrasive Type Boron Carbide

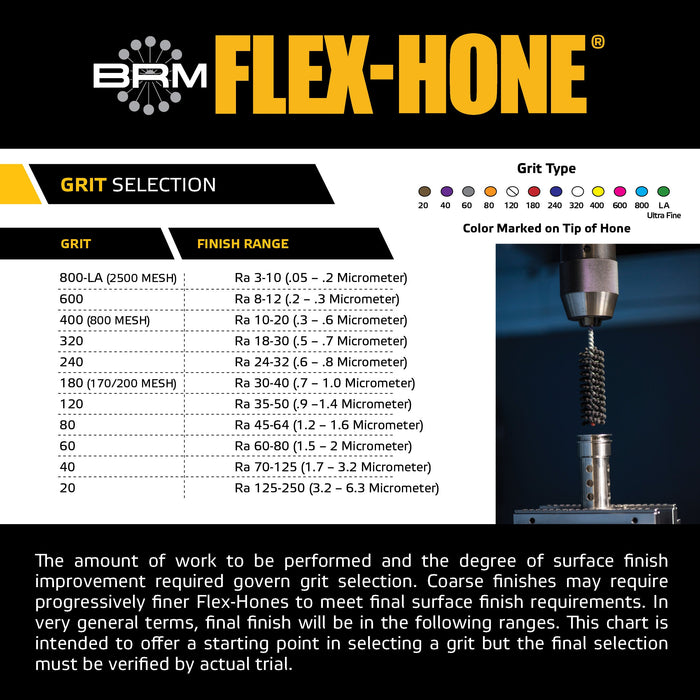

Grit 120

Tip Marking See Sections

Stem Marking See Sections

Recommended RPM 60 - 120

Feed Rate (ipm) 10 - 600

Lubrication Required

Power Requirements 1-1/2 hp to 5 hp

Ra Range 35 - 50 Microinch (.9 - 1.4 Micrometer)

Series GBDX-Super Heavy Duty FLEX-HONE®

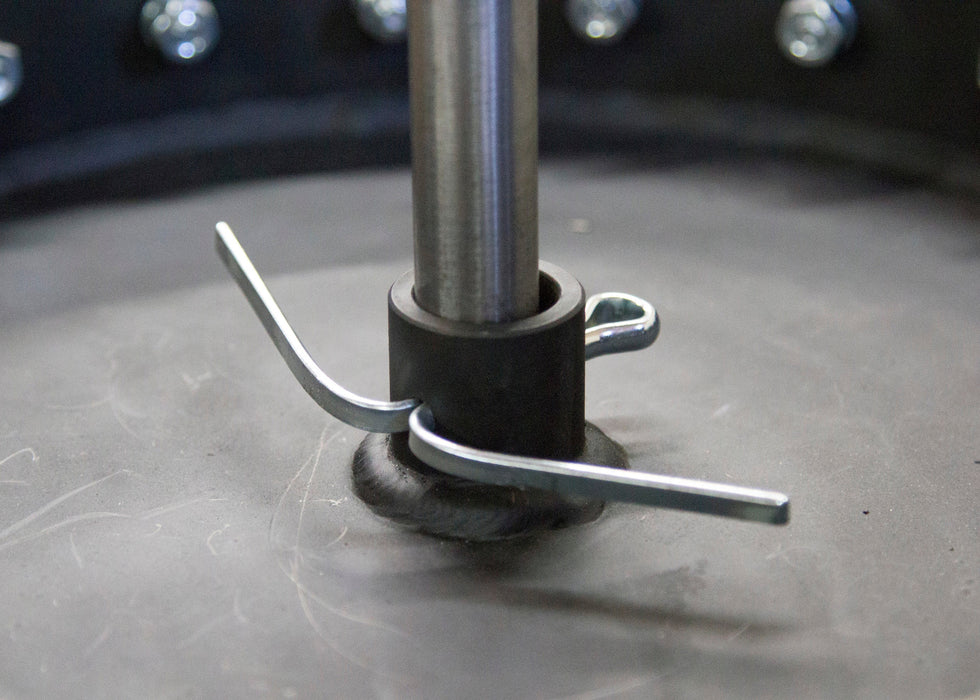

Shaft Diameter (in) 0.75

Drum 24.5

Number of Sections 44

Replacement Section B

Applicable Materials Medium to high carbon steels and heat-treated steels to 50 Rc. It is also useful in titanium

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469164681

description

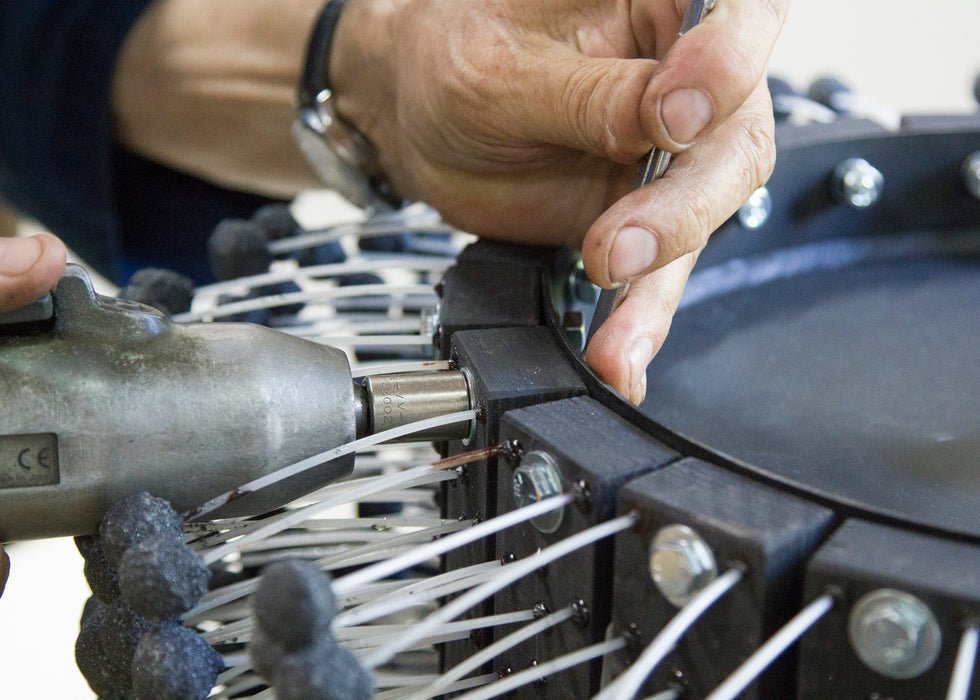

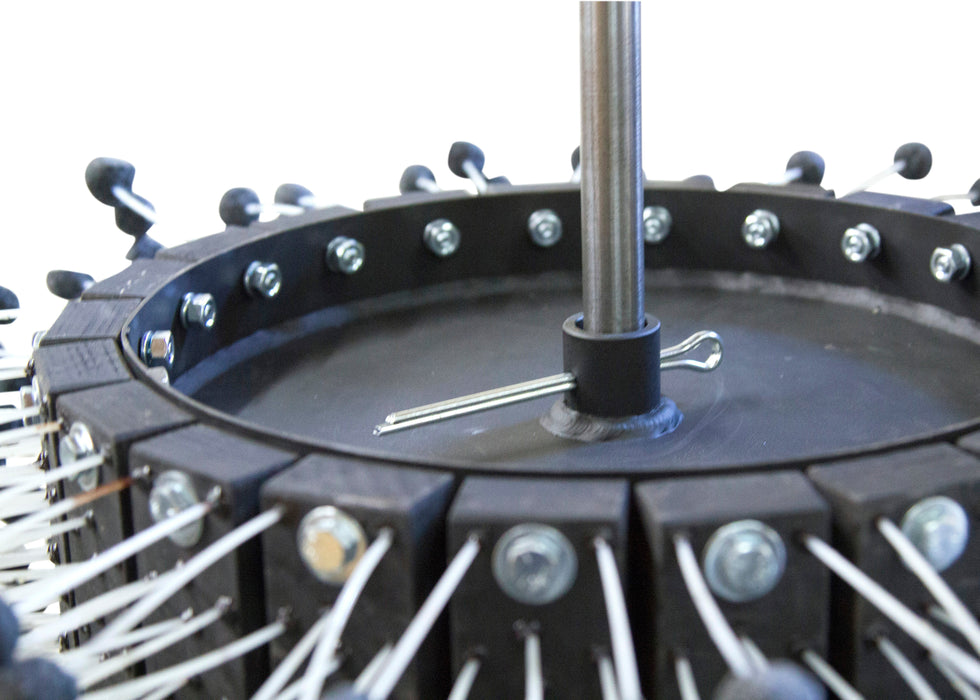

The BRM Extra Heavy Duty GBDX Series FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is constructed using a steel drum with replaceable honing sections allowing one drum to cover a range of bore diameters from 19”- 36” and to allow multiple grits or abrasive types. Shaft diameters range from 3/4" to 1-1/4", depending on drum diameter. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. In Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE® Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject.
