BRM GBDX3400120Z25 FLEX-HONE®, 34" (864mm) Bore, 36" OAL, 120 Grit, Zirconia Alumina #1525 (Z25)

Name: BRM GBDX3400120Z25 FLEX-HONE®, 34" (864mm) Bore, 36" OAL, 120 Grit, Zirconia Alumina #1525 (Z25)
Brand: Brush Research Manufacturing (BRM)
SKU: GBDX3400120Z25
Price: 5815.88 USD
Availability: OutOfStock

SKU: GBDX3400120Z25

Sold out

$5,815.88 - $5,815.88

$5,815.88

$5,815.88 - $5,815.88

$5,815.88

Availability:

Out of stock

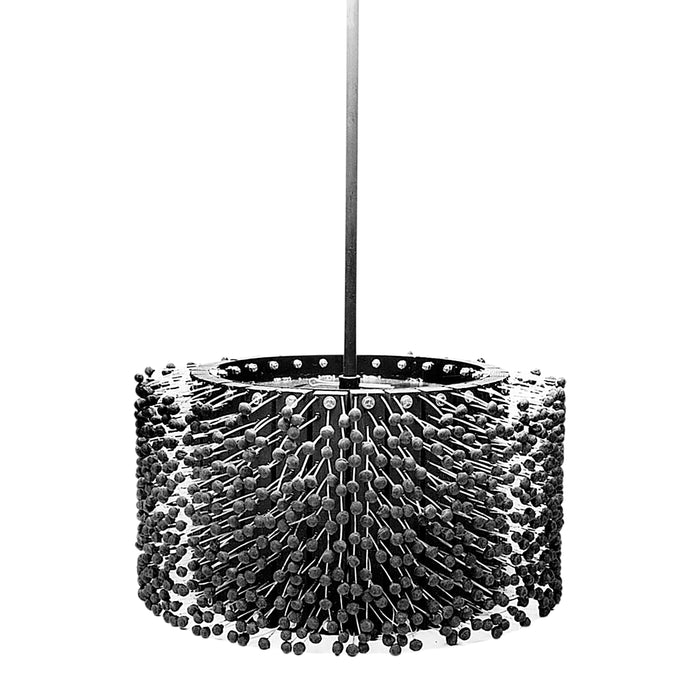

The GBDX3400120Z25 FLEX-HONE® tool for surface finishing and deburring is designed for nominal bore sizes between 33.001" and 34.000". This tool features 12.00" of abrasive globules which are composed of 120 grit Zirconia Alumina #1525 (Z25) and are excellent for Low carbon to medium carbon steels, stainless steel and cast iron. Constructed using a steel drum with replaceable honing sections.

quality you can count on

Items in Stock

Typically ship within 24-48 hours!

Need Technical Assistance?

Contact our Experts @ 323-261-2193 Mon-Fri 8:00AM-4:30PM PST

Can't Find The Right Tool?

Our engineers are available to provide technical support as well as design custom solutions!

Features and benefits

["Proudly Made in the USA
Self Centering
Self Aligning
Self Compensating for Wear
Commonly used for finishing
deburring
and edge breaking
Typically achieves a finish of 35 - 50 Microinch (.9 - 1.4 Micrometer)
Uses replaceable C sections
Features a 1.250" driveshaft
Excellent on low carbon to medium carbon steels
stainless steel and cast iron"]

Request a quote

Description

Brand Name FLEX-HONE®

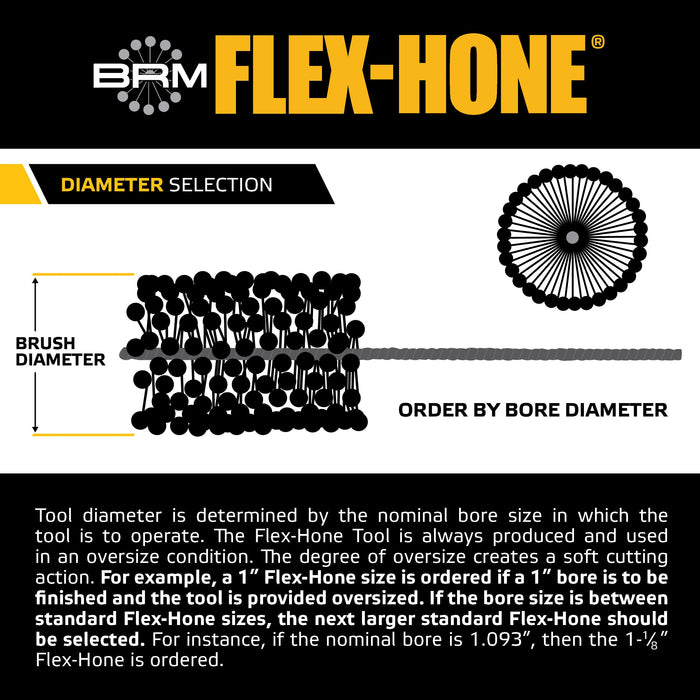

Bore Diameter (in) 34

Bore Diameter (mm) 559

Minimum Bore Diameter (in) 21.001

Maximum Bore Diameter (in) 34

Overall Length (in) 28

Abrasive Part (in) 12

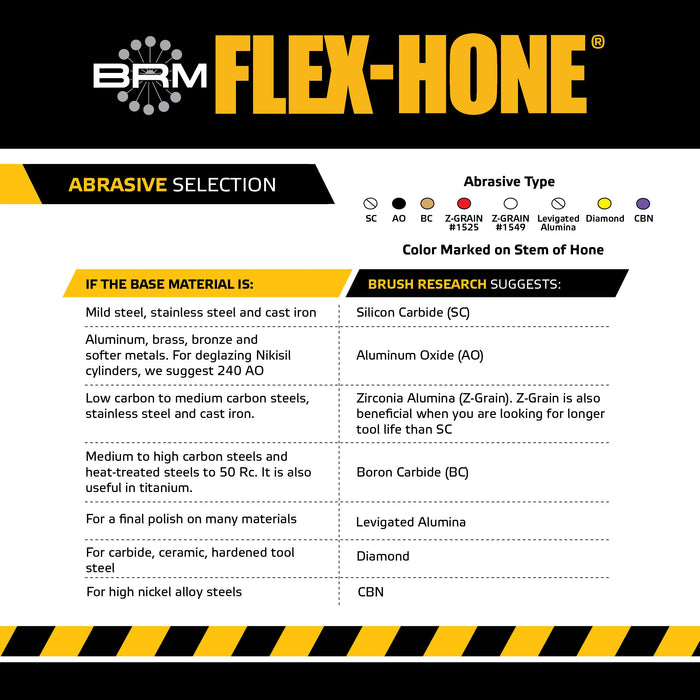

Abrasive Type Zirconia Alumina #1525

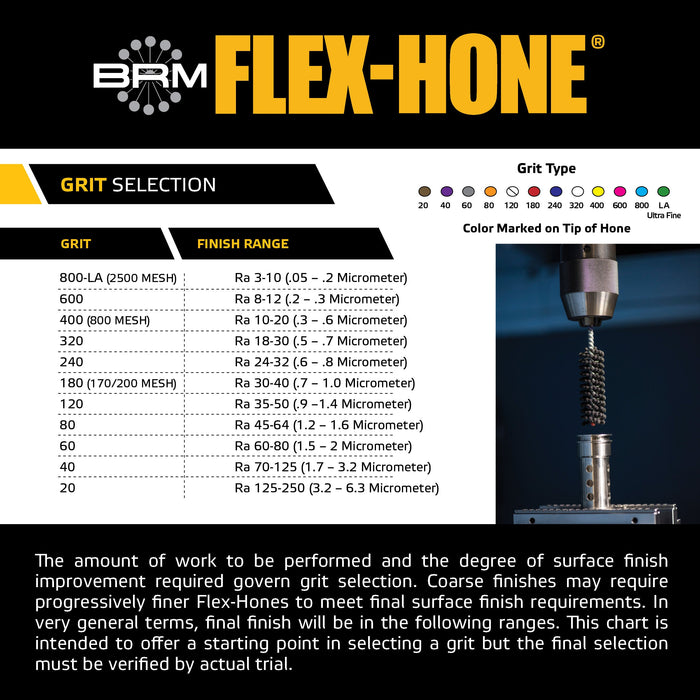

Grit 120

Tip Marking See Sections

Stem Marking See Sections

Recommended RPM 60 - 120

Feed Rate (ipm) 10 - 600

Lubrication Required

Power Requirements 1-1/2 hp to 5 hp

Ra Range 35 - 50 Microinch (.9 - 1.4 Micrometer)

Series GBDX-Super Heavy Duty FLEX-HONE®

Shaft Diameter (in) 1.25

Drum 11.5

Number of Sections 22

Replacement Section C

Applicable Materials Low carbon to medium carbon steels, stainless steel and cast iron

Standard Pack Quantity 1

Commodity Code 8207.90.7585

UPC Code 843469155474

Prop 65 Warning Description

⚠️ CA WARNING: Cancer risk from exposure to Silica. See www.P65Warnings.ca.gov

description

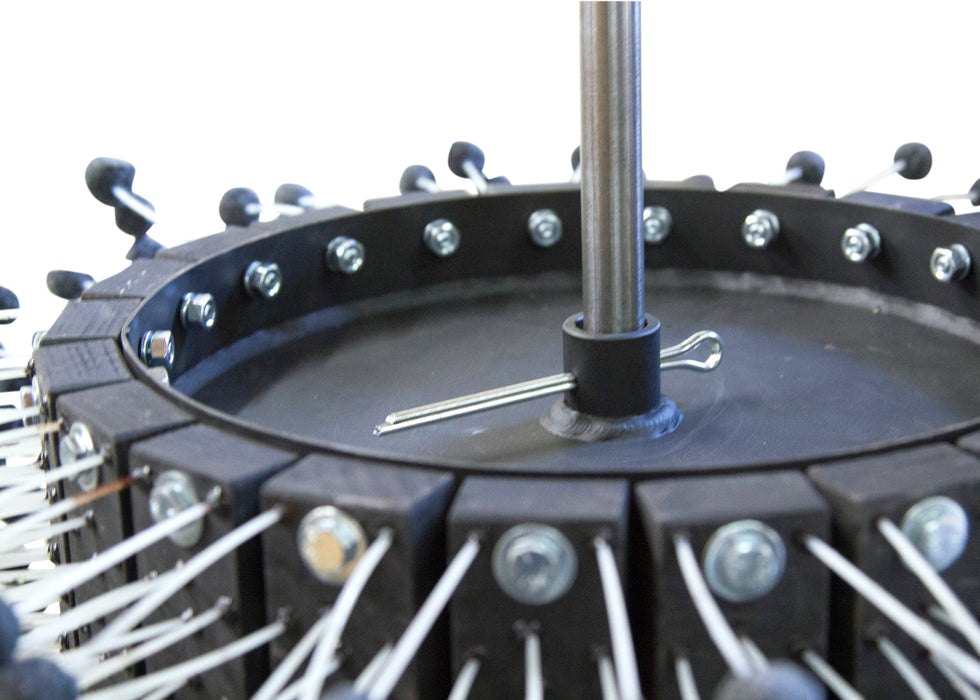

The BRM Extra Heavy Duty GBDX Series FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is constructed using a steel drum with replaceable honing sections allowing one drum to cover a range of bore diameters from 19”- 36” and to allow multiple grits or abrasive types. Shaft diameters range from 3/4" to 1-1/4", depending on drum diameter. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. In Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE® Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject.

User Guides

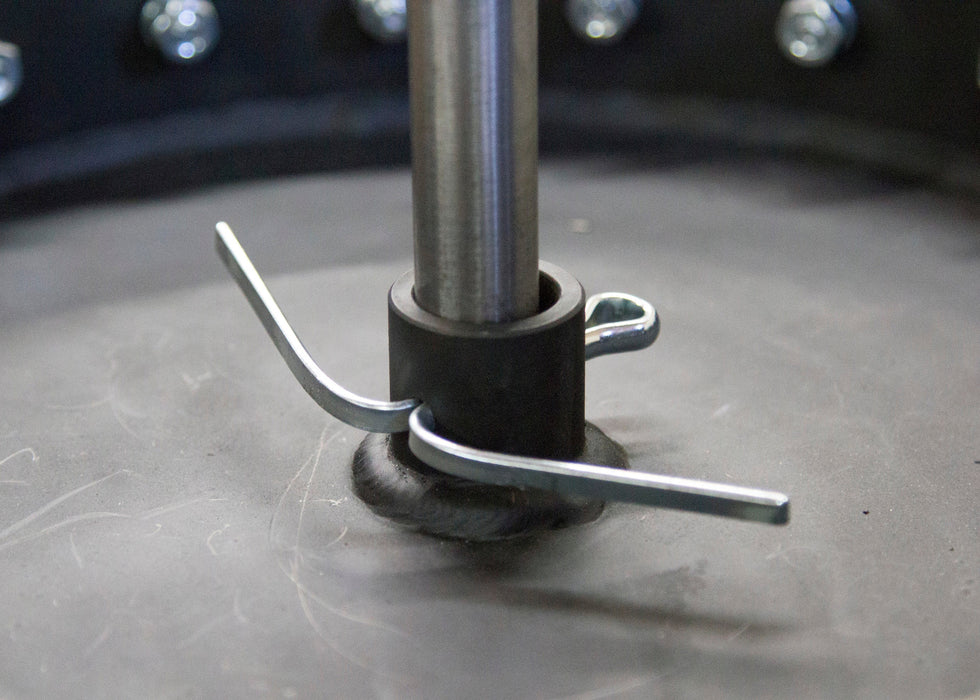

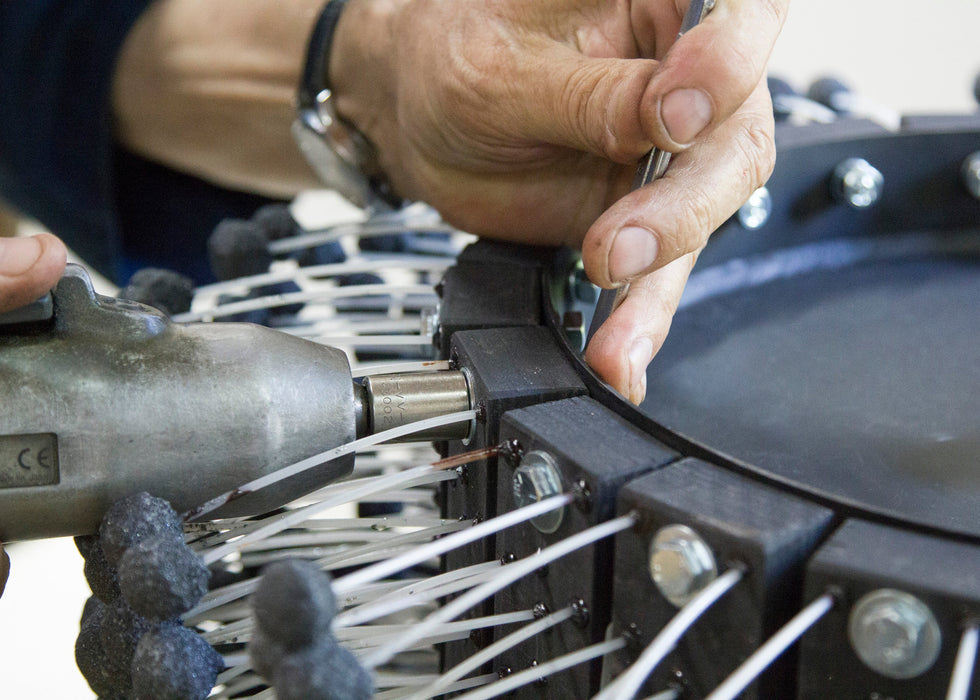

FLEX-HONE® Resource Guide The Flex-Hone Resource Guide teaches you how to select the right tool for your application. Have you ever had questions about tool diameter, grit selection, abrasive type or recommended RPMs? We go over all of this and more. GBDX Assembly Instructions A complete guide to the components included to assemble the GBDX hone along with step by step instructions.

Application Sales Sheet

FLEX-HONE® Crosshole Deburring FLEX-HONE® ID Polishing of Hardened Tool Steel FLEX-HONE® Coating Removal FLEX-HONE® Rust and Corrosion Removal FLEX-HONE® Thread Deburring

Case Studies

Oil and Gas Maintenance Nuclear Plant Pipes Large Bore Pumps, Valves and Engines

Safety Information

FLEX-HONE® SDS Sheet Safety Slip
