BRM pioneered the concept of a plateau finish and is a strong supporter of the benefits that a proper cross hatch finish can provide. Learn how the FLEX-HONE® is the ideal solution to your plateau honing after ridged honing.

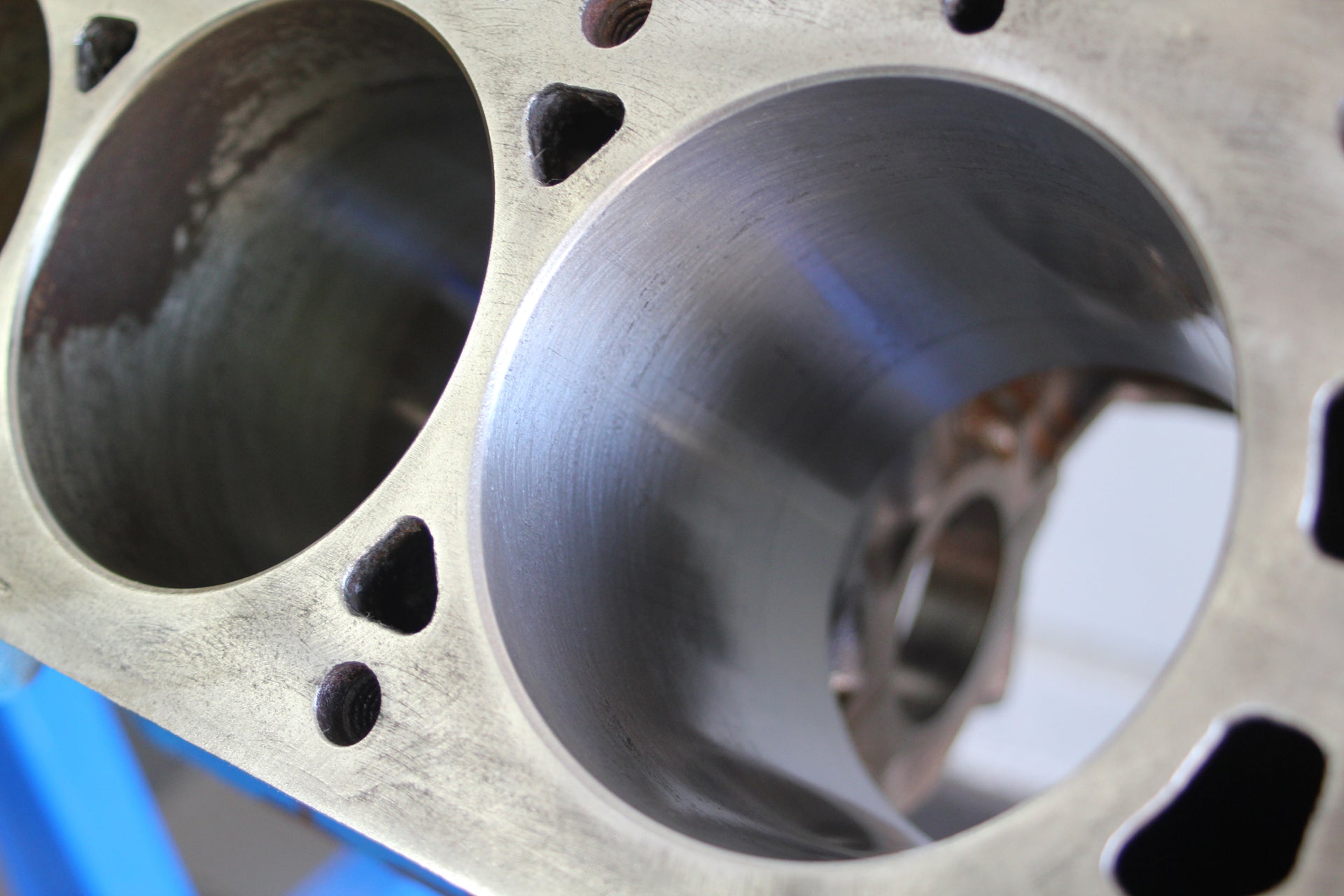

Rigid honing is a precision type of finishing process that uses a rigidly supported abrasive tool used to remove material from the surface of a bore or cylinder. It is typically used when high accuracy in bore geometry, size control, and surface finish is required such as in engine blocks, hydraulic cylinders, and aerospace components. The process yields a crosshatched surface pattern, improved roundness and straightness, with tight tolerances. Rigid honing, however, can still result in residual surface peaks which can increase friction, wear or break-in time.

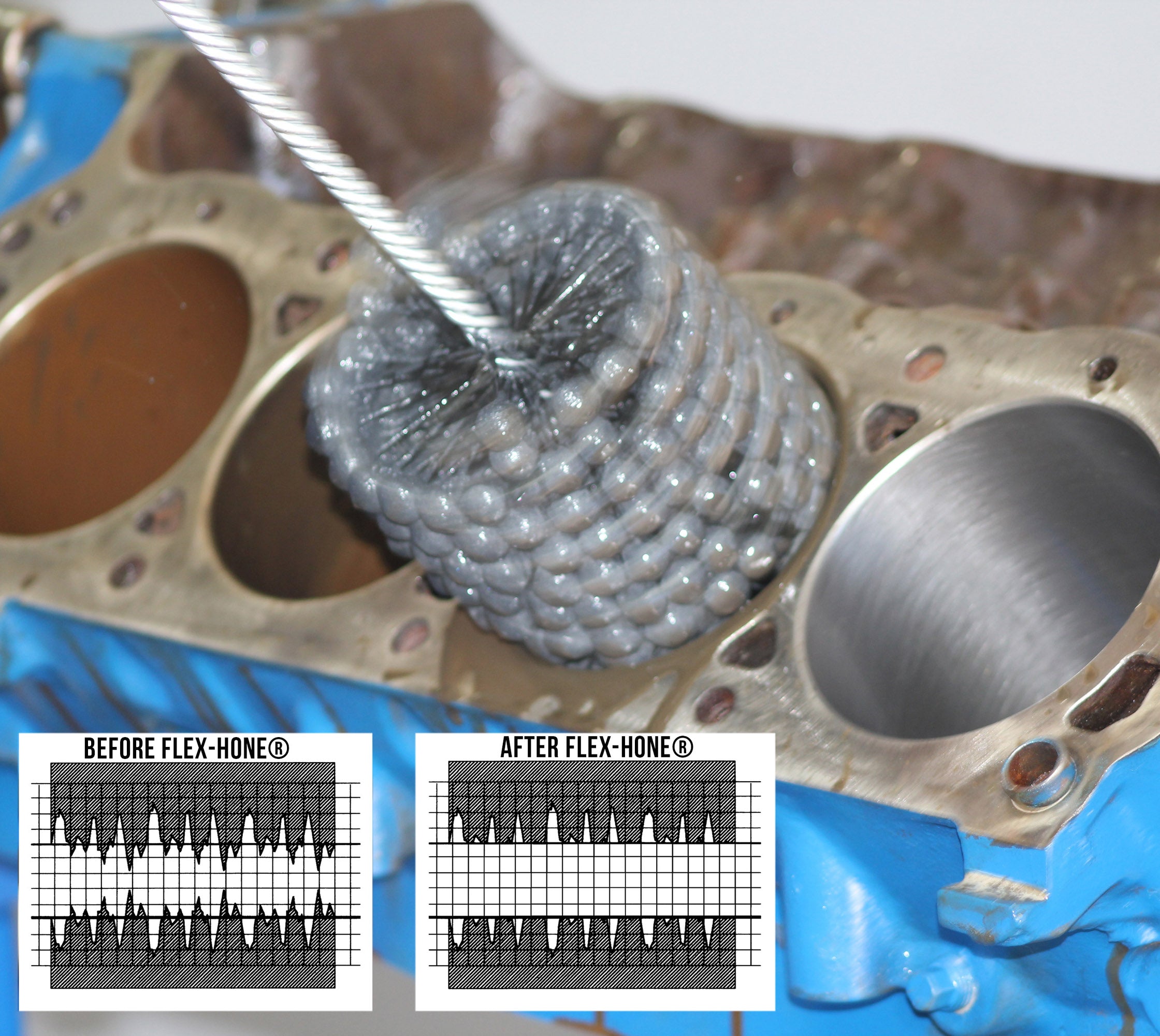

Plateau honing is an important subsequent operation that removes these surface peaks without changing the underlying bore geometry. By removing the peaks while retaining the valleys, plateau honing produces a flatter, more uniform surface that improves oil retention, reduces wear, and promotes longer component life. It enhances performance by reducing initial friction, shortening break-in periods, and helping to prevent scuffing or scoring.
Together, rigid honing and plateau honing provide a highly functional surface ideal for demanding applications where performance, longevity, and efficiency are critical. Rigid hones are effective for changing bore geometry while FLEX-HONE® tools accomplish an ideal crosshatch finish quickly and easily.
Learn how BRM tools are being used to improve processes, cut costs and save time!
The FLEX-HONE® Resource Guide teaches you how to select the right tool for your application. Have you ever had questions about tool diameter, grit selection, abrasive type or recommended RPMs? We go over all of this and more.
download pdf
A detailed presentation of several test run engines with performance results of lower blow-by, increased compression, less ring and cylinder wall wear with the FLEX-HONE® Process. 28 pages.
download pdf
Piston rings play a critical role to overall engine performance. Learn how the FLEX-HONE® consistently provides the optimal surface to ensure peak performance and ring seating.
download pdf
